GT25 11+0 blades 46.52/60.13mm 445436-0001 high performance milling/aluminum 2618/billet compressor wheel for ISUZU

1.Model:GT25 forward
2.GT25 11+0 blades 46.52/60.13mm 445436-0001 high performance collar dia 10mm billet/milling/aluminum 2618 compressor wheel for ISUZU 465949-0001/465997-0001/466261-0001/466543-0001/468397-0003/471024-0003/471104-0001/472547-0001/700716-0003

3.SIZE

Nose diameter:11.63mm

inducer:46.52mm

Exducer:60.13mm

Tapered tip exducer:65.00mm

Overall height:24.50mm

Tip height:5.22mm

Superback:2.30mm

Cutback:0.00mm

bore size :5.99mm

bore type:through

Trailing angle :60 degree

SP height angle:0.00

Splitter height:0.00mm

Blade height:20.10mm

11+0 blades

FORWARD ROTATION

Tapered tip angle:30 degree

It is for OE compressor housing

4.Good quality and competitive price

5.please email to me or talk to me on online ,if you want to know more details.

All the compressor wheels have been balanced.

We can produce as your requirement.

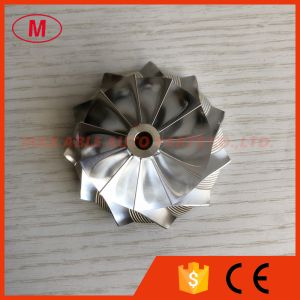

GT25 11+0 blades 46.52/60.13mm 445436-0001 high performance milling/aluminum 2618/billet compressor wheel for ISUZU Images
